Truck & Bus Tires
AP866

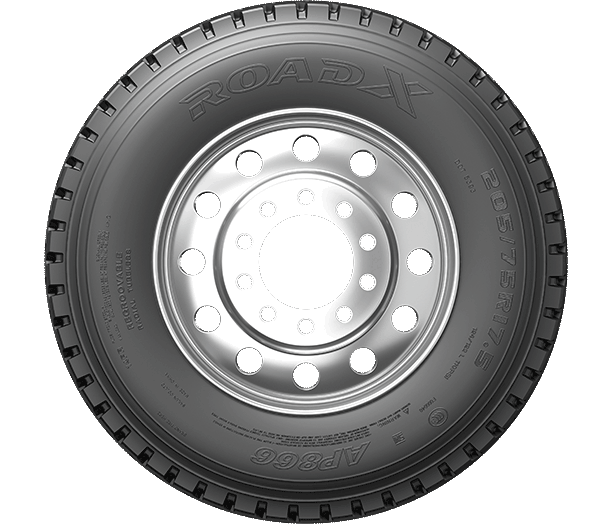

The Brilliance AP866 is an all-position tire for trucks traveling in on and off-road applications.
Large, deep shoulder grooves increase off-road traction.

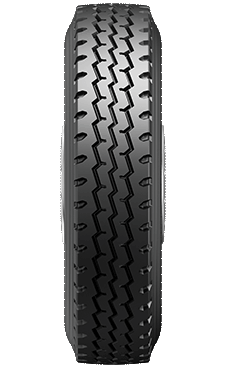

Unique tread grooves improve grip and traction as well as directional stability.
Tread design promotes even tread wear.
Wide running surface and specialized tread compound improve puncture and abrasion resistance.
* Swipe sideways to see more
| Plant | Size | Standard Rim(inch) | PR | Load | Pressure | Load Index | Tread Depth （mm） | Speed Grade | Inflated Tire Dimention(mm) | ||||||||
| Kg | Lbs | Kpa | Psi | ||||||||||||||
| S | D | S | D | S | D | S | D | S | D | D | B | ||||||
| CN | 6.50R16LT | 5.50F, 5 1/2J | 12 | 1060 | 925 | 2335 | 2040 | 670 | 670 | 97 | 97 | 110 | 105 | 10.5 | K | 750 | 185 |
| CN/VN | 7.00R16LT | 5.50F | 14 | 1320 | 1180 | 2910 | 2600 | 770 | 770 | 112 | 112 | 118 | 114 | 12.5 | L | 775 | 200 |
| CN | 7.00R16LT | 5.50F | 14 | 1320 | 1180 | 2910 | 2600 | 770 | 770 | 112 | 112 | 118 | 114 | 12.5 | N | 775 | 200 |
| CN/VN | 7.50R16LT | 6.00G | 14 | 1500 | 1320 | 3305 | 2910 | 770 | 770 | 112 | 112 | 122 | 118 | 12.5 | L | 805 | 215 |
| CN/VN | 8.25R16LT | 6.50H | 16 | 1800 | 1600 | 3970 | 3525 | 770 | 770 | 112 | 112 | 128 | 124 | 13.5 | L | 865 | 235 |
| CN/VN | 8.25R20 | 6.5 | 16 | 2430 | 2300 | 5355 | 5070 | 930 | 930 | 135 | 135 | 139 | 137 | 13 | K | 974 | 236 |
| CN | 9.00R20 | 7.0 | 14 | 2575 | 2430 | 5675 | 5355 | 790 | 790 | 115 | 115 | 141 | 139 | 15 | K | 1019 | 259 |
| CN/VN | 9.00R20 | 7.0 | 16 | 2800 | 2650 | 6170 | 5840 | 900 | 900 | 130 | 130 | 144 | 142 | 15 | K | 1019 | 259 |
| CN/VN | 10.00R20 | 7.5 | 18 | 3250 | 3000 | 7160 | 6610 | 930 | 930 | 135 | 135 | 149 | 146 | 16 | K | 1054 | 278 |
| CN | 11.00R20 | 8.0 | 16 | 3350 | 3075 | 7390 | 6780 | 830 | 830 | 120 | 120 | 150 | 147 | 16.5 | K | 1085 | 293 |
| CN | 11.00R20 | 8.0 | 18 | 3550 | 3250 | 7830 | 7160 | 930 | 930 | 135 | 135 | 152 | 149 | 16.5 | K | 1085 | 293 |
| CN/VN | 11R22.5 | 8.25 | 16 | 3150 | 2900 | 6940 | 6395 | 850 | 850 | 123 | 123 | 148 | 145 | 16 | M | 1065 | 279 |
| CN/VN | 11R24.5 | 8.25 | 16 | 3250 | 3000 | 7160 | 6610 | 830 | 830 | 120 | 120 | 149 | 146 | 16 | M | 1104 | 279 |
| CN | 12.00R20 | 8.5 | 18 | 3750 | 3450 | 8270 | 7610 | 830 | 830 | 120 | 120 | 154 | 151 | 17 | K | 1125 | 315 |
| VN | 12.00R20 | 8.5 | 22 | 4250 | 3875 | 9370 | 8540 | 970 | 970 | 140 | 140 | 158 | 155 | 17 | J | 1125 | 315 |
| CN/VN | 12.00R24 | 8.5 | 20 | 4500 | 4125 | 9930 | 9090 | 900 | 900 | 130 | 130 | 160 | 157 | 14 | K | 1210 | 308 |
| CN | 12.00R24 | 8.5 | 18 | 4250 | 3875 | 9370 | 8540 | 830 | 830 | 120 | 120 | 158 | 155 | 14 | K | 1238 | 315 |
| CN | 12R22.5 | 9.00 | 18 | 3550 | 3250 | 7830 | 7160 | 930 | 930 | 135 | 135 | 152 | 149 | 16.5 | K | 1085 | 300 |
| VN | 13R22.5 | 9.75 | 18 | 3750 | 3350 | 8270 | 7390 | 850 | 850 | 125 | 125 | 154 | 150 | 16 | L | 1124 | 320 |
| CN/VN | 13R22.5 | 9.75 | 20 | 4000 | 3350 | 8820 | 7390 | 900 | 900 | 130 | 130 | 156 | 150 | 16 | K | 1124 | 320 |
| CN | 295/80R22.5 | 9.00 | 16 | 3550 | 3150 | 7830 | 6940 | 850 | 850 | 123 | 123 | 152 | 148 | 17.5 | M | 1044 | 298 |
| CN | 295/80R22.5 | 9.00 | 18 | 3550 | 3250 | 7830 | 7160 | 900 | 900 | 130 | 130 | 152 | 149 | 17.5 | L | 1044 | 298 |
| VN | 315/80R22.5 | 9.00 | 20 | 4125 | 3750 | 9090 | 8045 | 900 | 900 | 125 | 125 | 157 | 154 | 16 | K | 1076 | 312 |
| CN/VN | 315/80R22.5 | 9.00 | 20 | 4000 | 3650 | 8820 | 8045 | 850 | 850 | 125 | 125 | 156 | 153 | 16 | K | 1076 | 312 |
