AP869

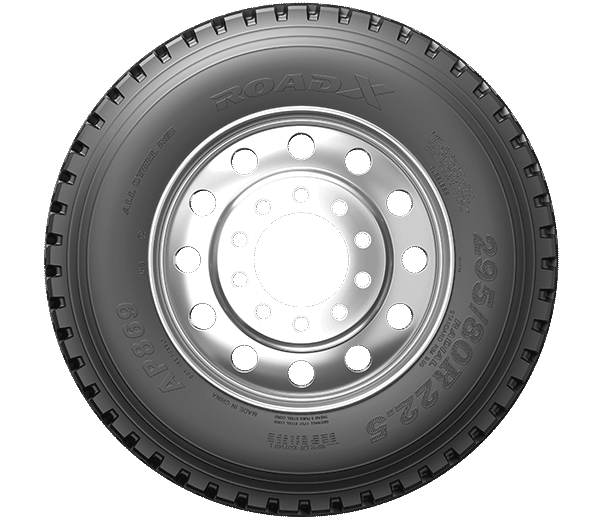

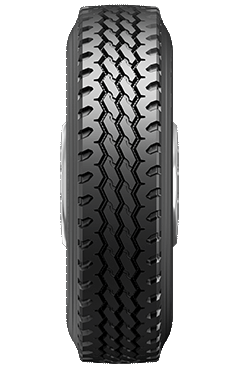

The Brilliance AP869 is an all-position tire for trucks driving in on and off-road applications.
Bead structure improves overall durability.
Strengthened tread and tire structure improve overall safety.
Large shoulder and deep groove design improve heat dissipation.
Wide running surface and special tread compound improve wear and puncture resistance.
Main groove design improves overall traction and grip.
* Swipe sideways to see more
| Plant | Size | Standard Rim(inch) | PR | Load | Pressure | Load Index | Tread Depth （mm） | Speed Grade | Inflated Tire Dimention(mm) | ||||||||
| Kg | Lbs | Kpa | Psi | ||||||||||||||
| S | D | S | D | S | D | S | D | S | D | D | B | ||||||
| CN | 11.00R20 | 8.0 | 18 | 3550 | 3250 | 7830 | 7160 | 930 | 930 | 135 | 135 | 152 | 149 | 16.5 | K | 1085 | 293 |
| CN | 12.00R24 | 8.5 | 20 | 4500 | 4125 | 9920 | 9090 | 900 | 900 | 130 | 130 | 160 | 157 | 16 | K | 1238 | 315 |
| VN | 255/70R22.5 | 7.5 | 16 | 2500 | 2300 | 5510 | 5070 | 830 | 830 | 120 | 120 | 140 | 137 | 16 | L | 930 | 255 |
| CN | 295/80R22.5 | 9.00 | 16 | 3550 | 3150 | 7830 | 6940 | 850 | 850 | 123 | 123 | 152 | 148 | 17 | M | 1044 | 298 |
| CN | 315/80R22.5 | 9.00 | 18 | 4000 | 3350 | 8820 | 7385 | 850 | 850 | 123 | 123 | 156(154) | 150(150) | 17 | L(M) | 1076 | 312 |
| CN | 315/80R22.5 | 9.00 | 20 | 4125 | 3750 | 9090 | 8270 | 900 | 900 | 130 | 130 | 157 | 154 | 17 | K | 1076 | 312 |
